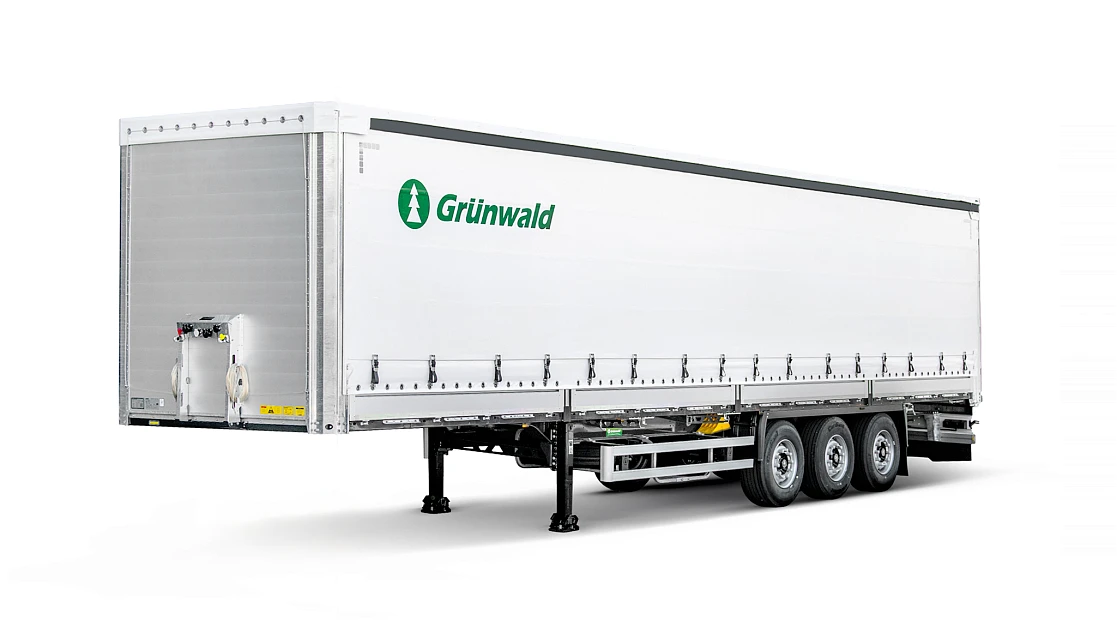

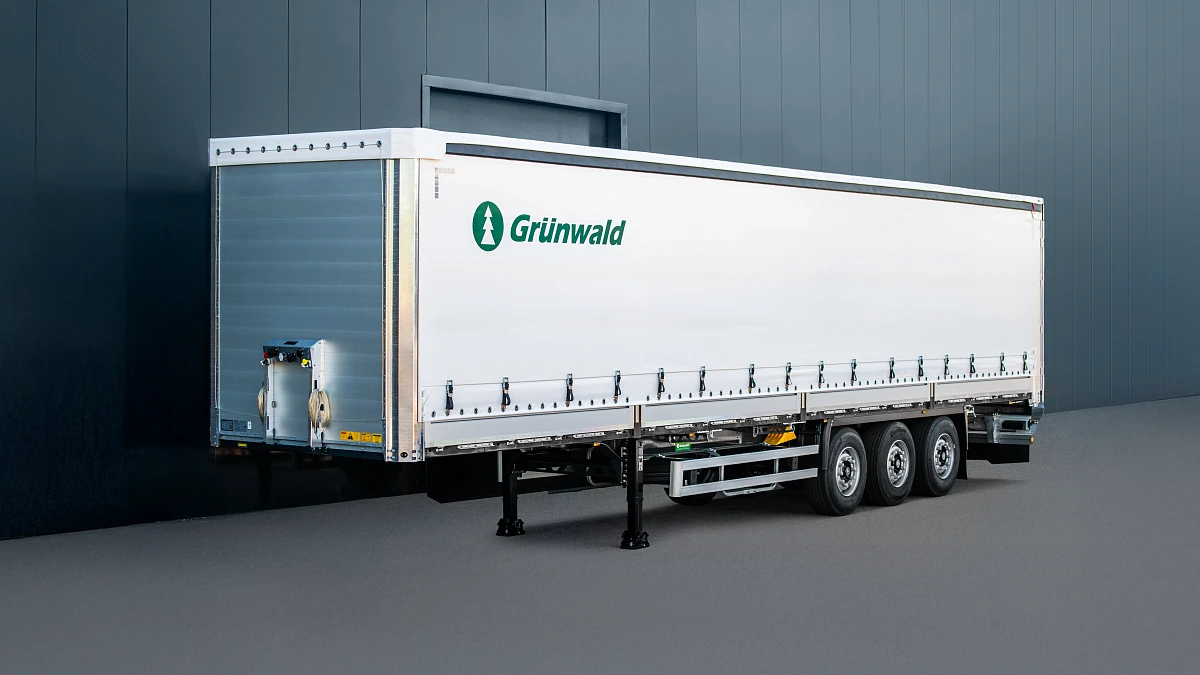

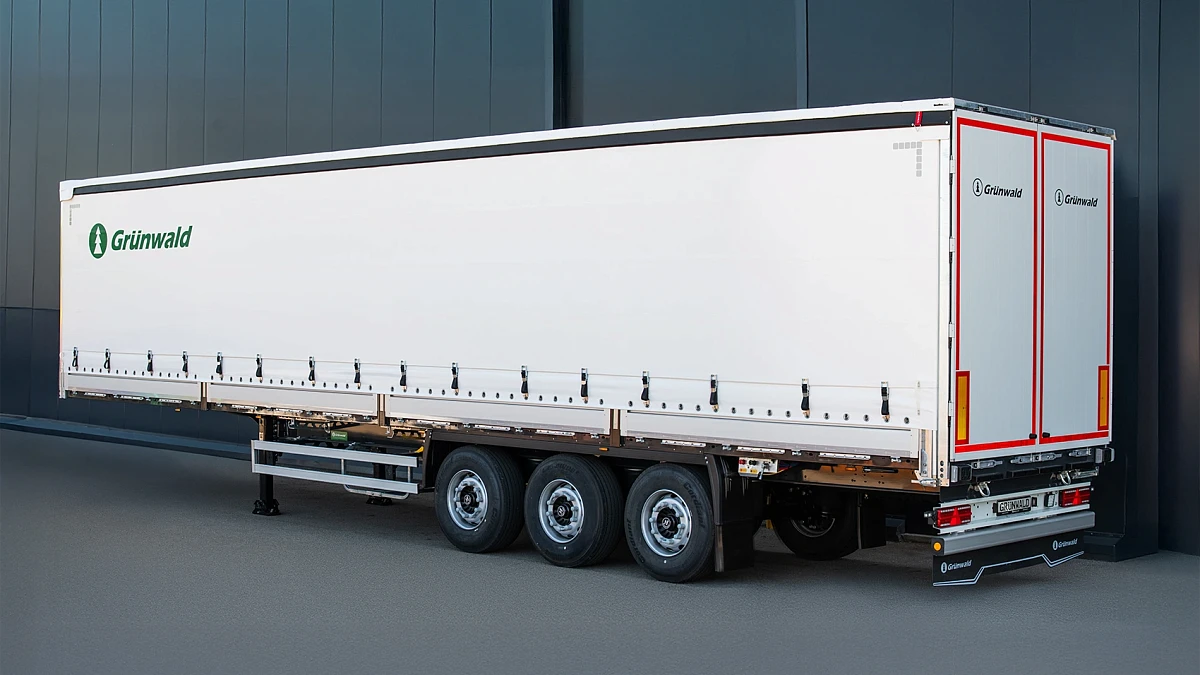

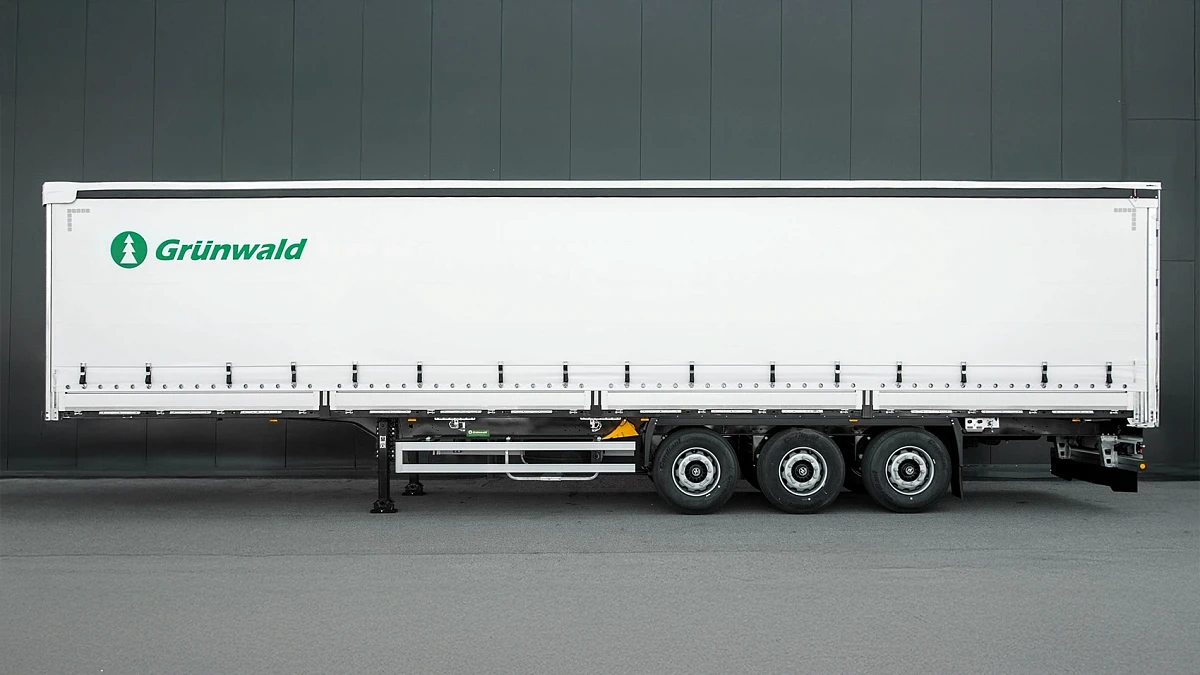

Dropside Curtainsider Gr.DСS

Reliable highway of interregional transportation: Stable and efficient
movement of goods
Unlimited scope of application: Ideal for a wide range
of transport tasks
Wide functional possibilities: Proper level of fixation
of different sized loads

Specifications

Own weight: от 6 750 kg
Overall length: 13 900 mm
Kingpin load: 11 000 kg
Load capacity: 31 250 kg
Overall width: 2 550 mm
Fifth wheel height: 1 150 mm
Overall height: 4 000 mm
Axle system load: 27 000 kg
Tires: 385/65 R22.5
Permissible gross weight: 38 000 kg
Vehicle category: 04 Standard
Loading height: 1 270 mm
Cargo area length: 13 635 mm
Load area width: 2 480 mm

Description

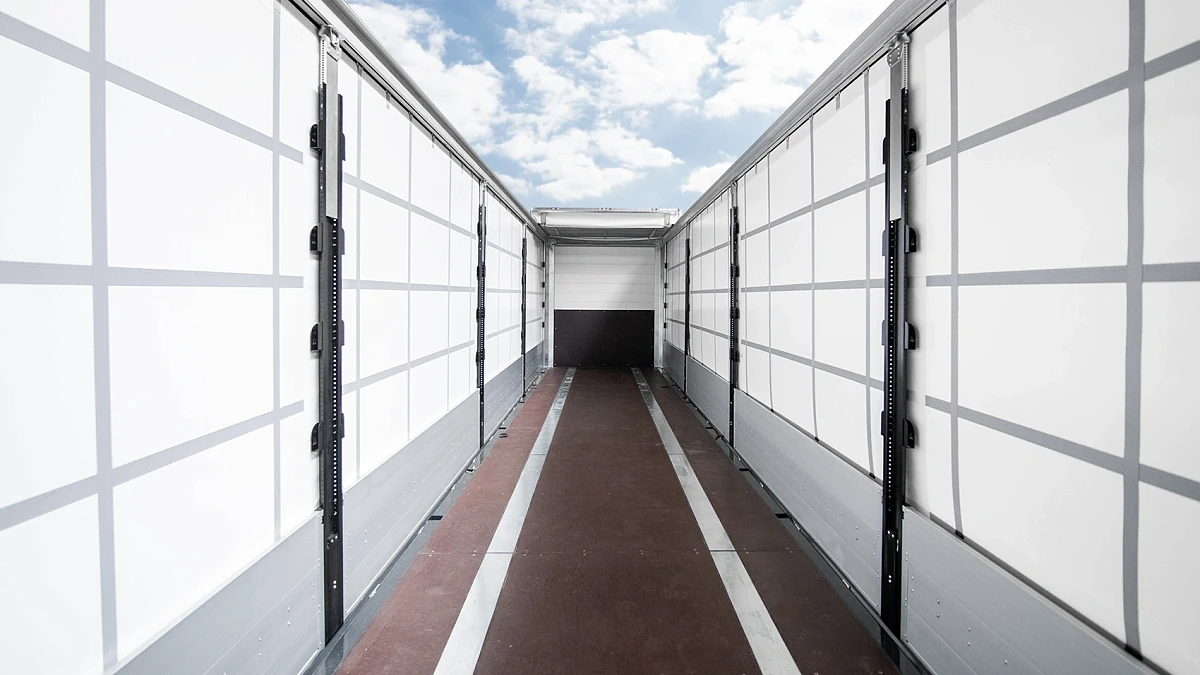

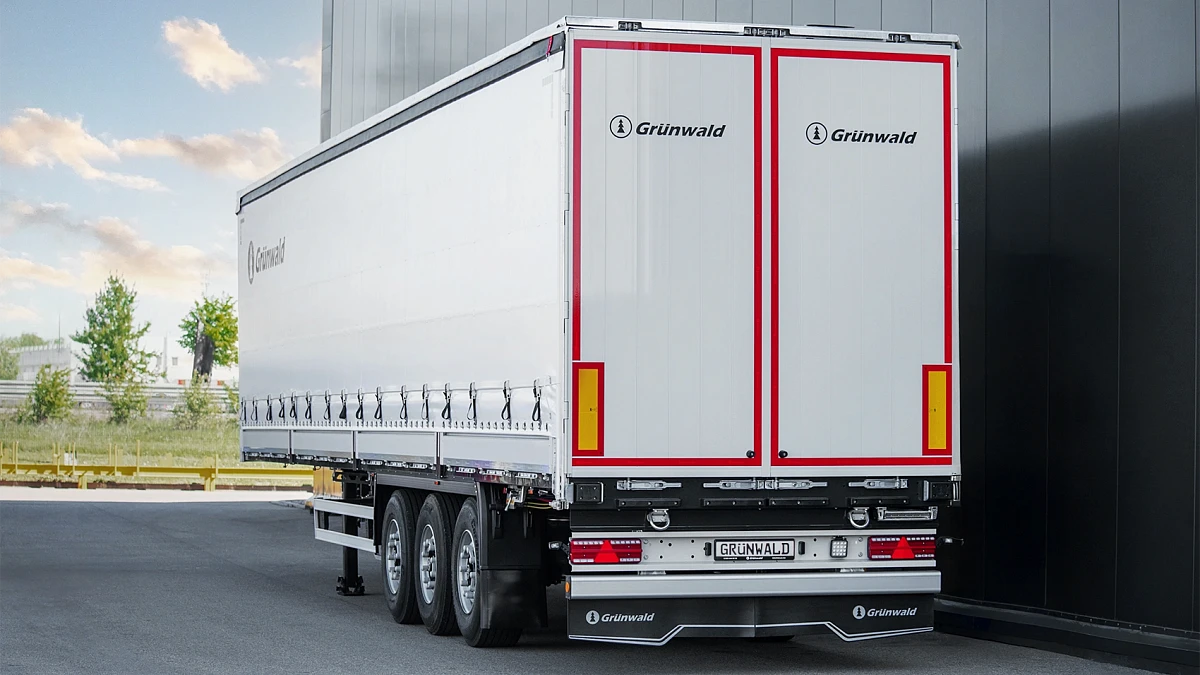

The Gr.DСS curtain-sided semi-trailer model is designed for the safe transportation of a wide range of commercial and industrial goods. From palletized goods and building materials to industrial equipment, furniture and household appliances. The semi-trailer's cargo area can accommodate 33 Euro pallets.

This model of semitrailer will allow to cover a much larger scale of transport operations, increasing economic efficiency. The principles of versatility and reliability underlying the model ensure stable operation in various operating conditions, guaranteeing cargo safety and reducing logistics costs.

The basis of the Gr.DСS model is a main frame designed according to modern design principles using advanced materials and their properties.

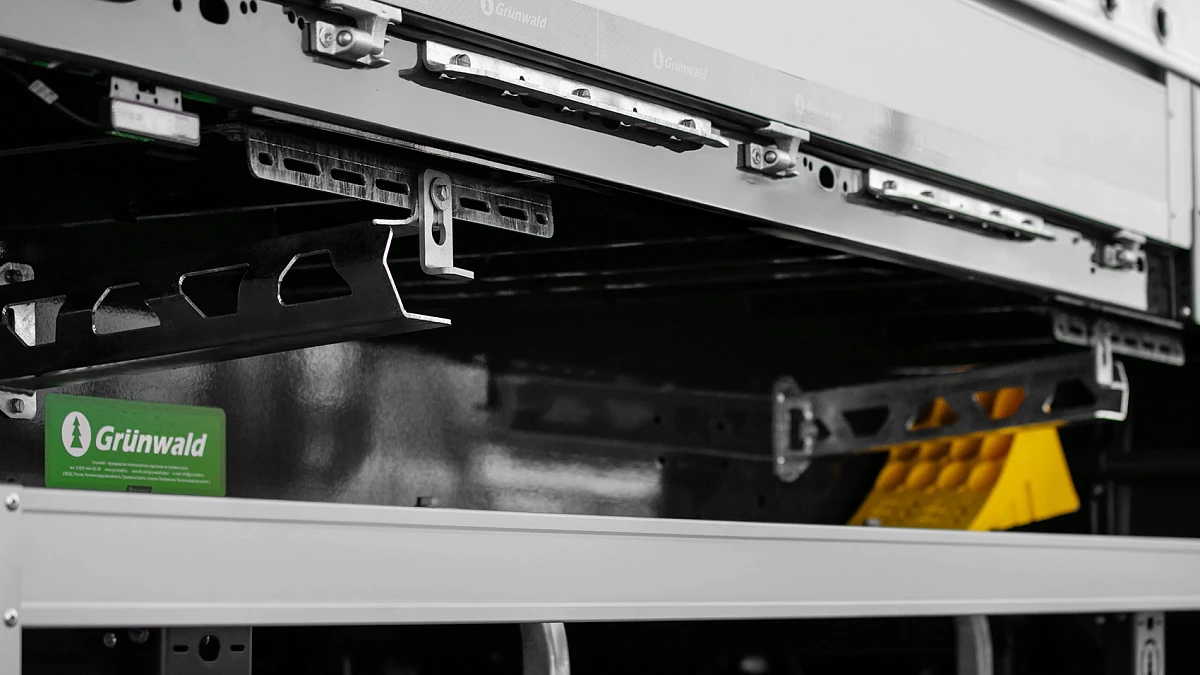

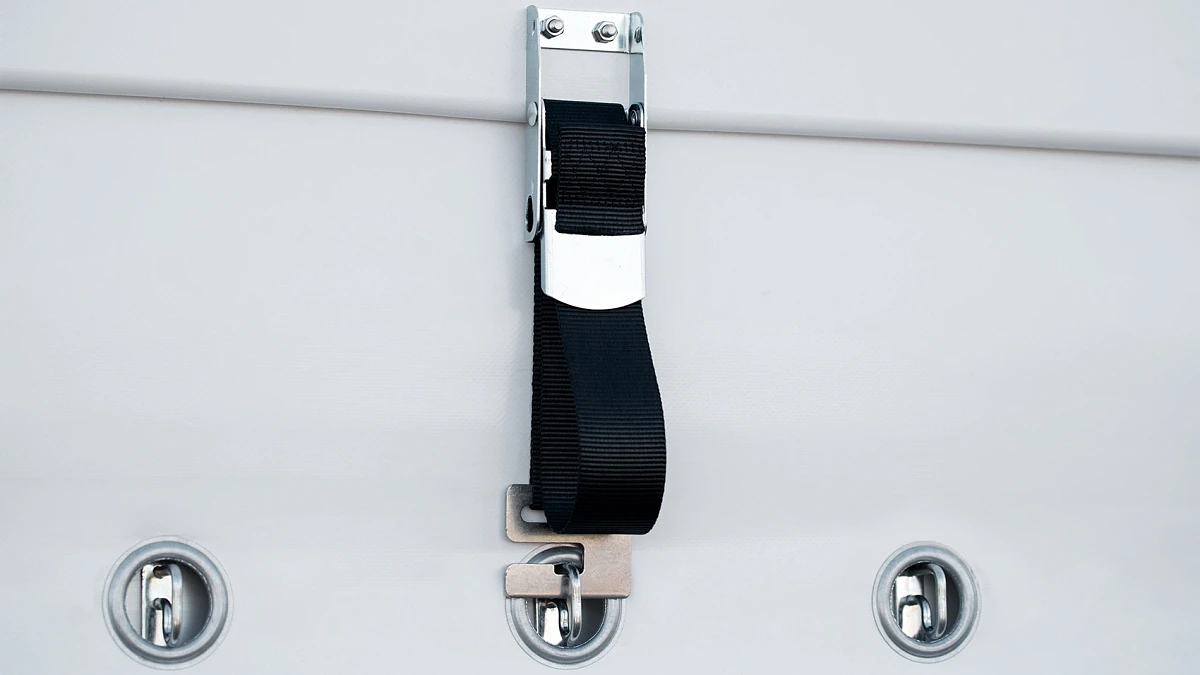

The well-thought-out basic equipment of the semi-trailer includes holes for installing metal cones, which are located in a special cassette fixed to the frame side member. Hinges recessed into the floor, each of which can withstand a load of up to 2000 kg, ensure reliable fastening of the load..

At the request of the customer, the semitrailer delivery package may be upgraded to include the following additional options:

Set of bolsters in the amount of 12 pcs;
Pallet box for 24 europallets;
A custom color design.

Certification

Grunwald’s semitrailers are certified in accordance with the latest certification rules published by the Federal Technical Regulation and Metrology Agency of the Russian Federation (Rosstandart) and conform to the requirements of the Technical Regulations of the Eurasian Economic Union (EAEU).

Warranty

The warranty period for the semitrailer structure shall be the lesser of 12 months from the time of initial registration or 24 months from the time of manufacture, as recorded in the Manufacturer’s Certificate of Origin.
