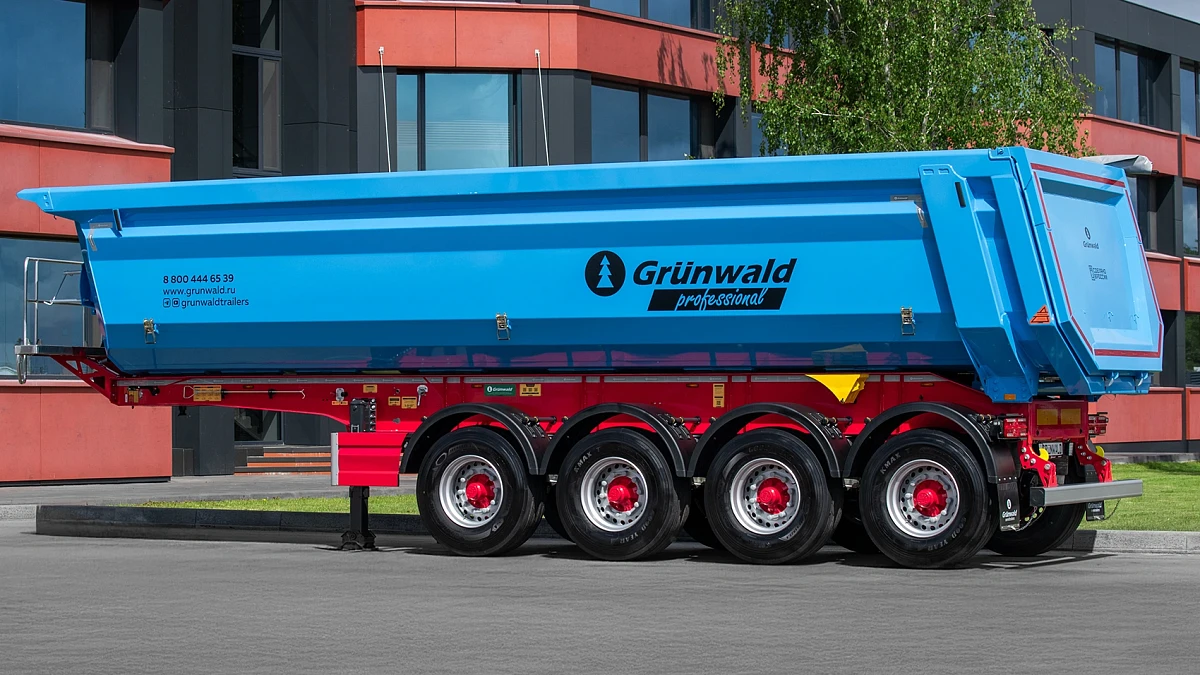

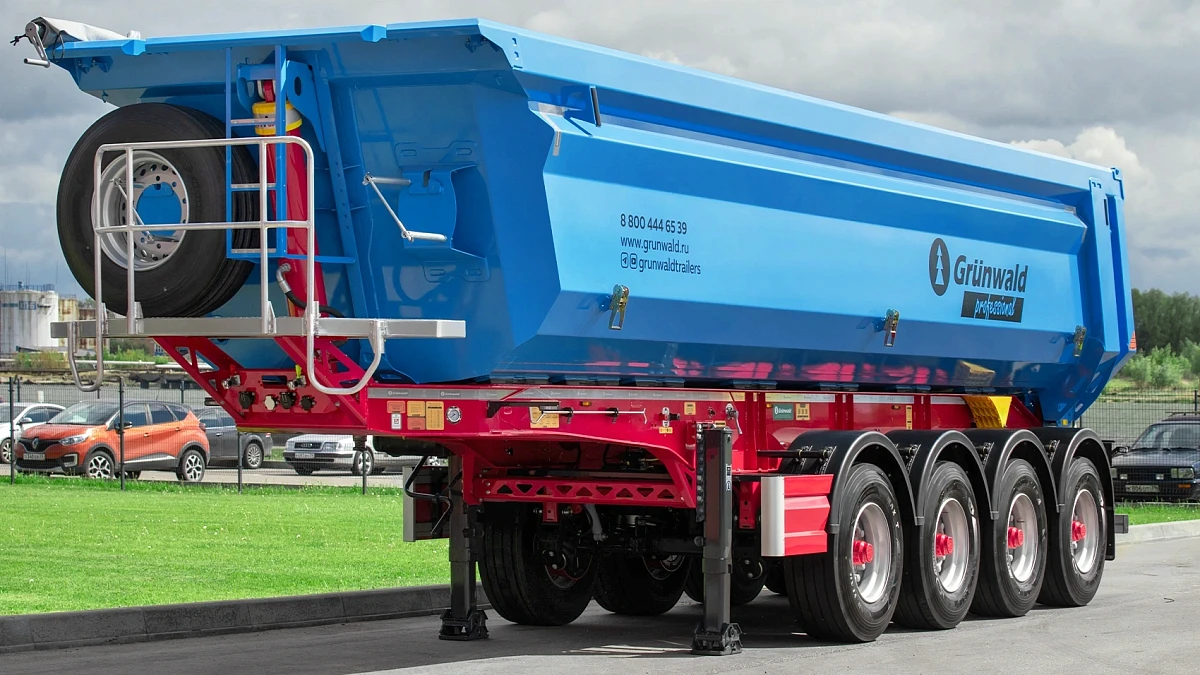

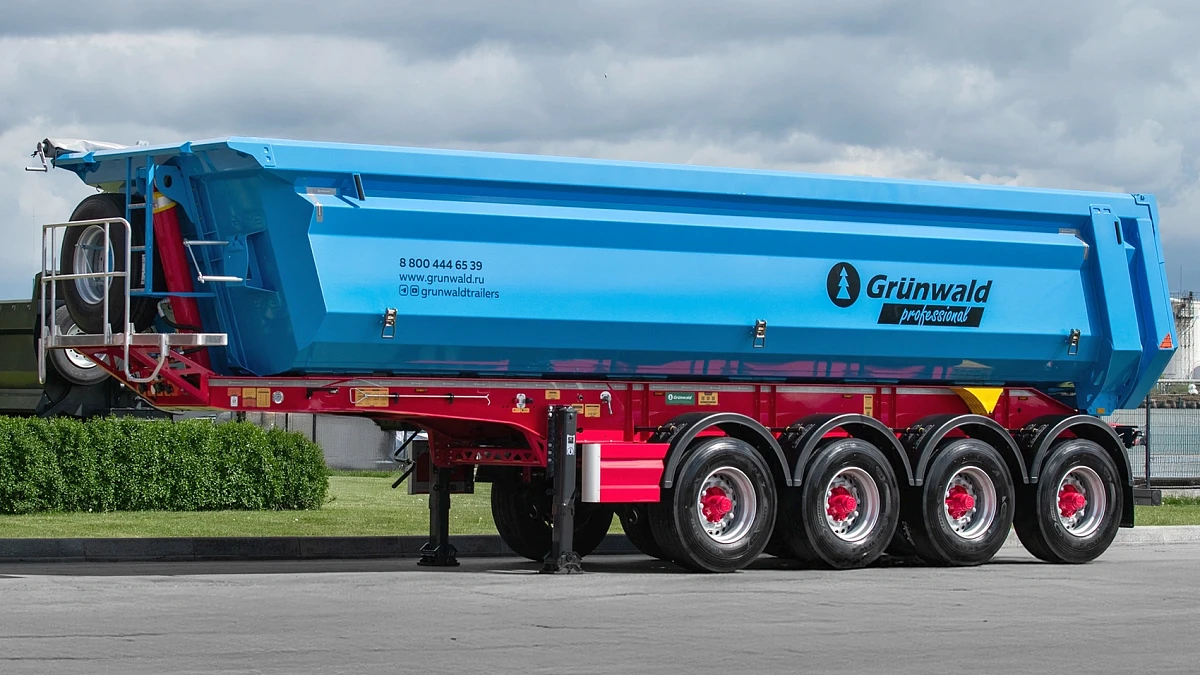

Tipper semi-trailer Gr.T33-SH
Specifications
- Geometric volume
- 33 m3
- Internal body width
- 2 291 mm
- Own weight
- от 8 750 kg
- Overall length
- 10 300 mm
- Kingpin load
- 11 000 kg
- Load capacity
- 38 250 kg
- Overall width
- 2 500 mm
- Fifth wheel height
- от 1 220 mm
- Maximum body lift angle
- 47º
- Overall height
- 3 150 mm
- Axle system load
- 27 000 kg
- Tires
- 385/65 R22.5
- Body height at front wall
- 1 670 mm
- Permissible gross weight
- 47 000 kg
- Vehicle category
- 04 стандарт
Description
The Gr.T33-SH4 project was created based on the analysis of non-metallic transportation models in a number of regions of the Russian Federation and takes into account regional trends and needs. As practice shows, solutions that have proven successful in one region can be effective in others.
The key task that Gr.T33-SH4 semi-trailers solve is the transportation of dense non-metallic materials and minerals. The spacious body and reliable chassis allow working with maximum body loading when required, or vice versa, using the optimal load distribution scheme with the maximum permitted weight of the road train of 44 tons, to work on long routes laid along federal and regional highways.
The Gr.T33-SH4 model semi-trailer deserves the attention of those transport entrepreneurs who in practice have to solve radically different transport tasks - the transportation of inert materials over long distances along federal highways taking into account weight loads and short-term transshipment of large volumes of cargo over short distances. Seemingly mutually exclusive tasks can be solved using the same dump semi-trailer.

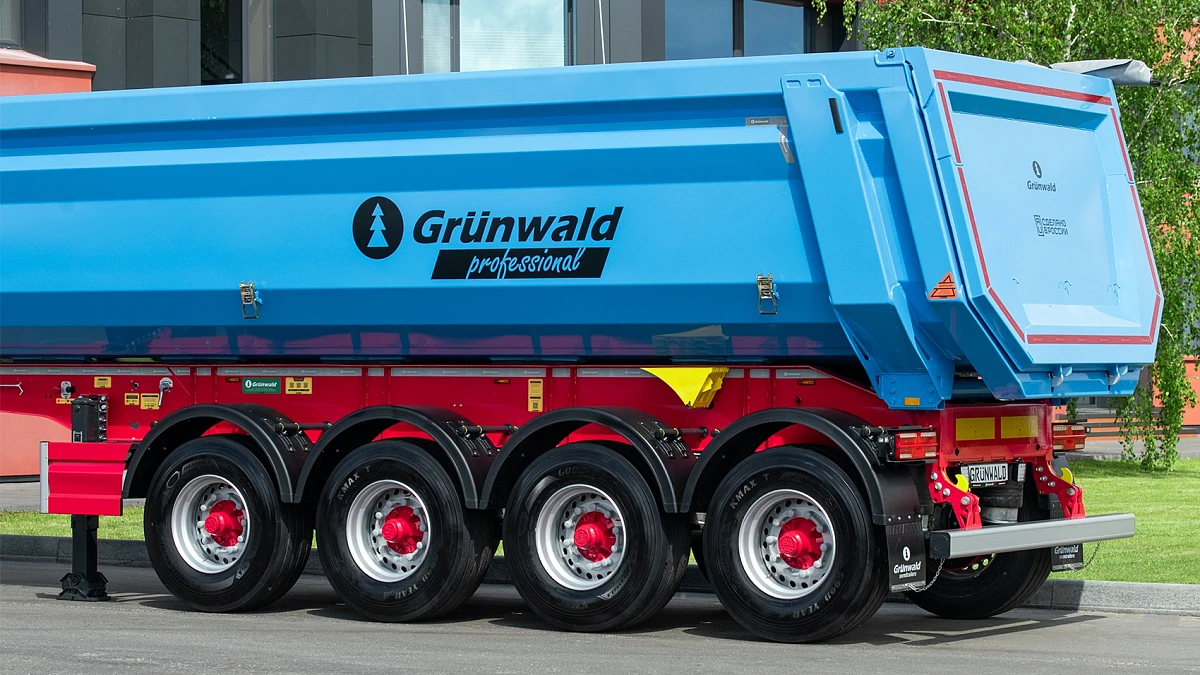

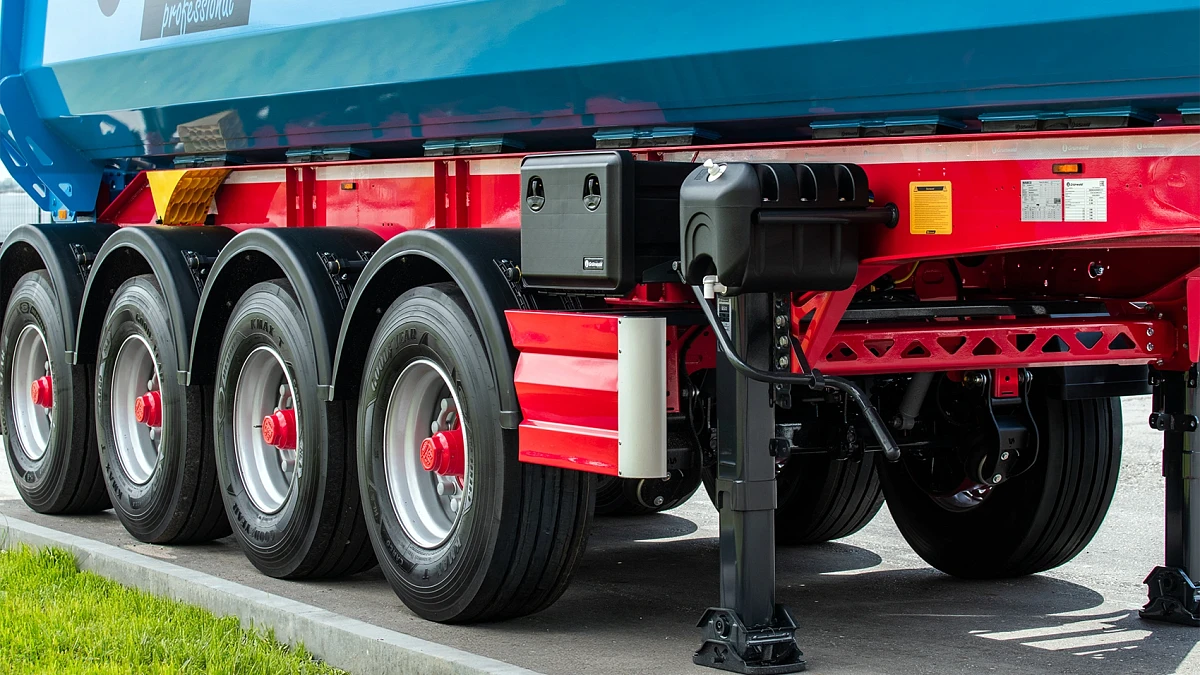

The Gr.T33-SH4 model has all the necessary characteristics and demonstrates them favorably as part of a road train with a tractor with a 4x2 wheel arrangement. Thanks to the 4-axle chassis, the semi-trailer experiences less load on each individual axle and, accordingly, on the wheel. Higher braking efficiency of the loaded road train is also achieved. The presence of two lifting axles facilitates maneuvering, turns and U-turns in confined areas. In the basic configuration, the semi-trailer is equipped with a wide range of equipment and options useful for the operator.
At the request of the customer, the semitrailer delivery package may be upgraded to include the following additional options:
-
AxisLoad Smart Trailer Monitoring System;
-

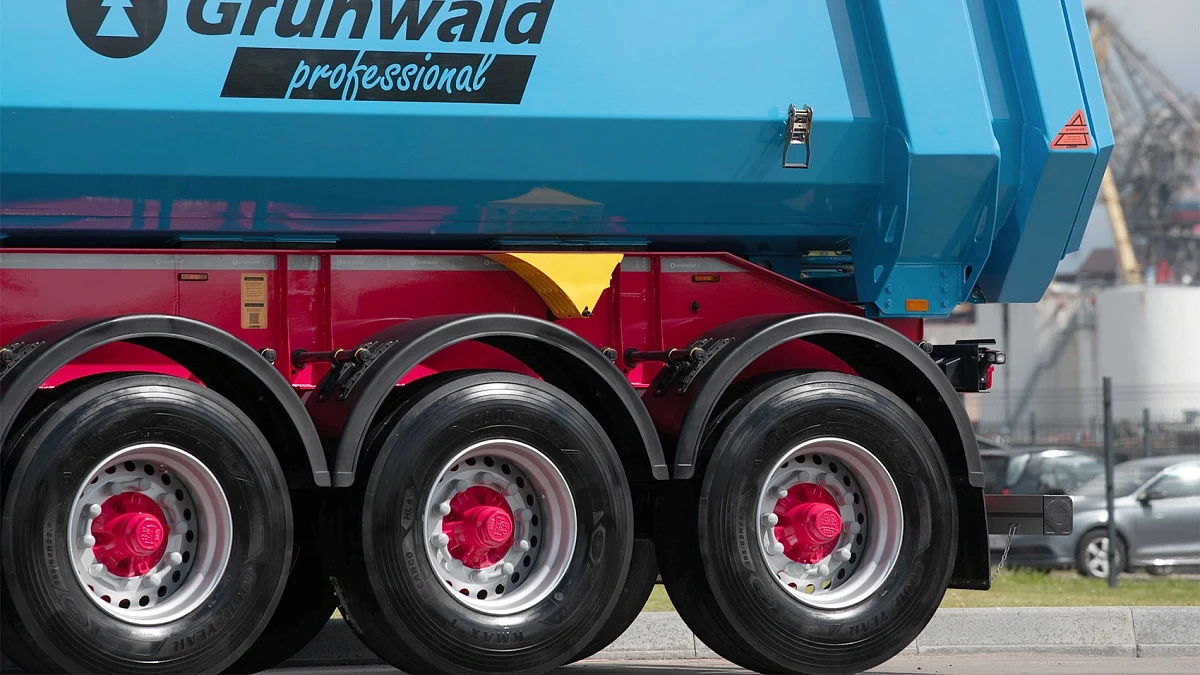

Axle unit with a load capacity of 12 tons per axle;
-
Disc brakes;
-
3.5-inch kingpin;
-
Individual vinyl wrap.
Certification
Grunwald’s semitrailers are certified in accordance with the latest certification rules published by the Federal Technical Regulation and Metrology Agency of the Russian Federation (Rosstandart) and conform to the requirements of the Technical Regulations of the Eurasian Economic Union (EAEU).
Warranty
The warranty period for the semitrailer structure shall be the lesser of 12 months from the time of initial registration or 24 months from the time of manufacture, as recorded in the Manufacturer’s Certificate of Origin.
