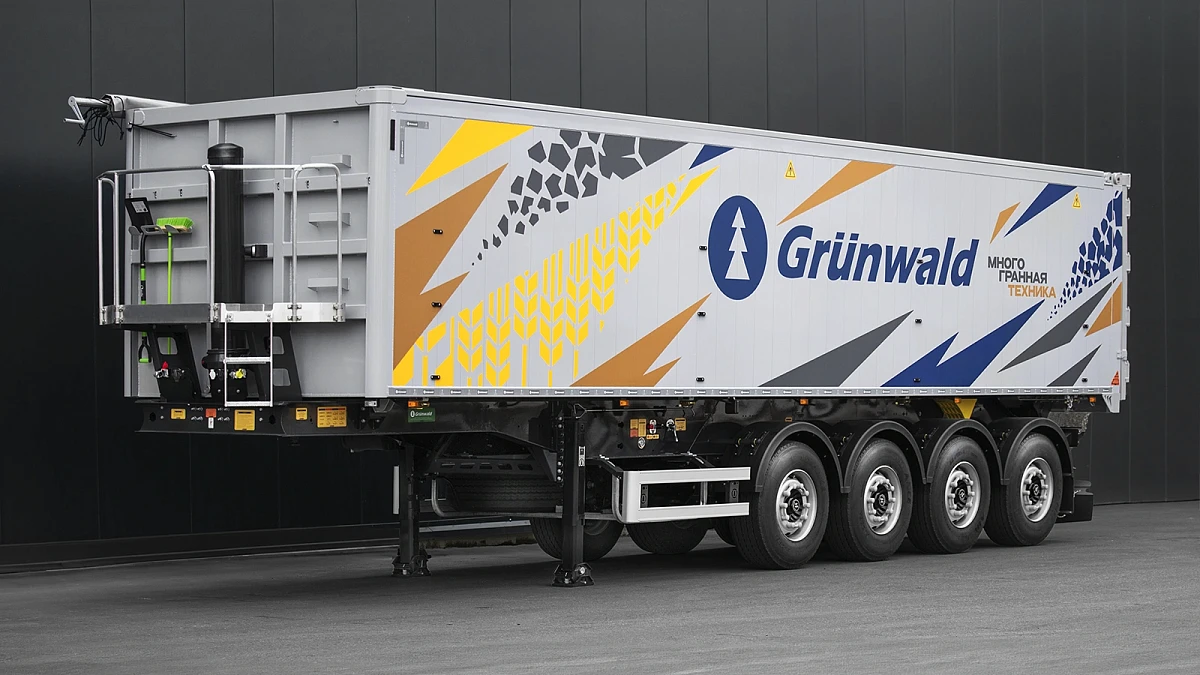

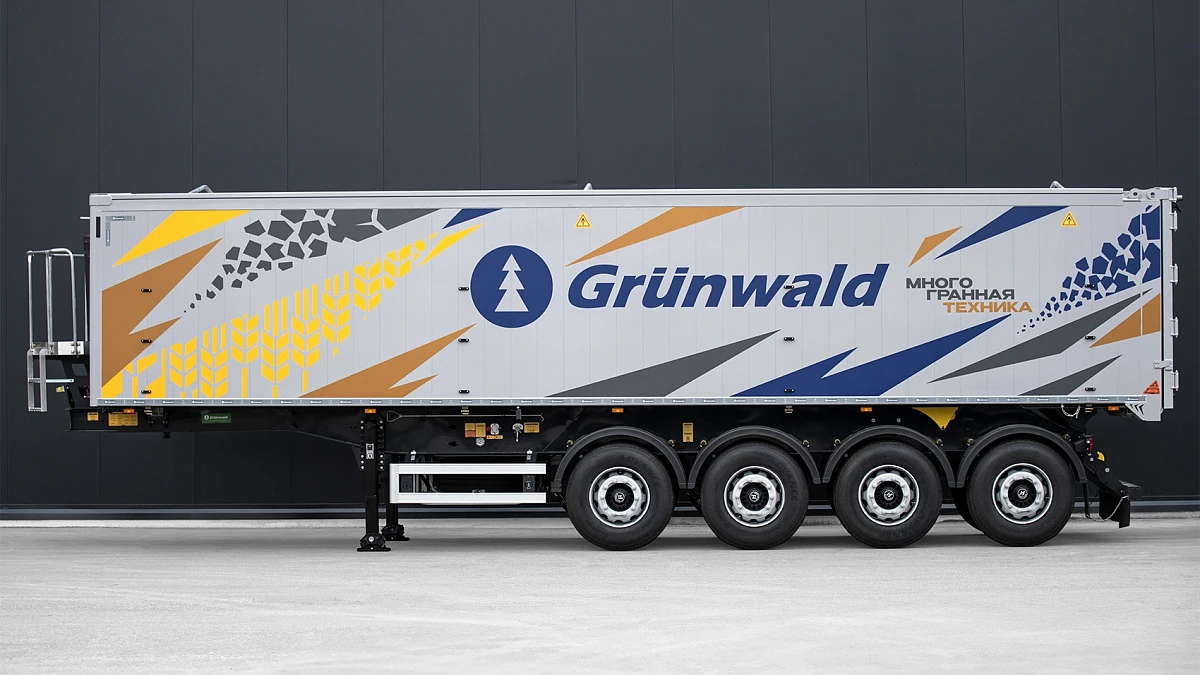

Tipper semi-trailer Gr.T52 AB4
Specifications
- Geometric volume
- 52 m3
- Internal body width
- 2 470 mm
- Own weight
- от 7 950 kg
- Overall length
- 11 550 mm
- Kingpin load
- 10 000 kg
- Load capacity
- 38 050 kg
- Overall width
- 2 500 mm
- Fifth wheel height
- 1 150 mm
- Maximum body lift angle
- 45º
- Overall height
- 3 550 mm
- Axle system load
- 36 000 kg
- Tires
- 385/65 R22.5
- Body height at front wall
- 1 700 mm
- Permissible gross weight
- 46 000 kg
- Vehicle category
- 04 standard
Description
With its high capacity and high payload at low operating costs, the new Gr.T52-AB dump truck model demonstrates exceptional performance for transportation in all areas of agriculture/
Choosing the Gr.T52-AB model is an effective investment that makes a noticeable difference to the transportation process, increasing profitability and productivity at the same time
The box-type body with a wide base and a volume of 52 cubic meters is made of high-quality aluminum and aluminum profile. The thickness of the body base is 8 mm, the thickness of the side profile is 30 mm.

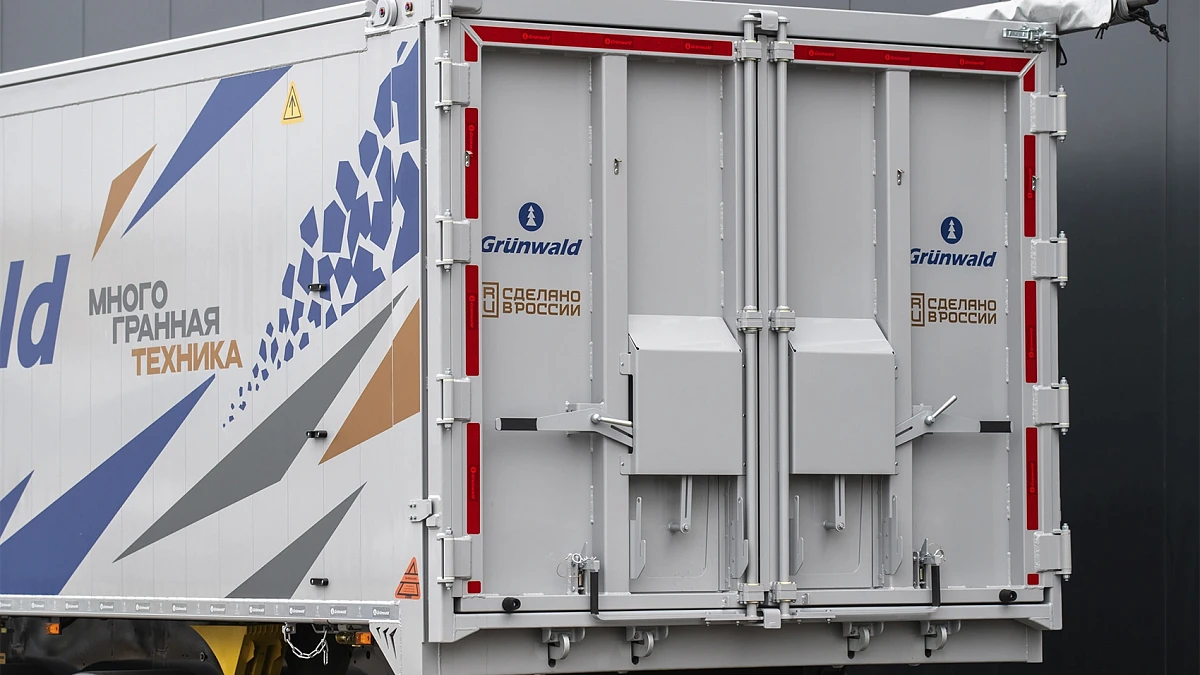

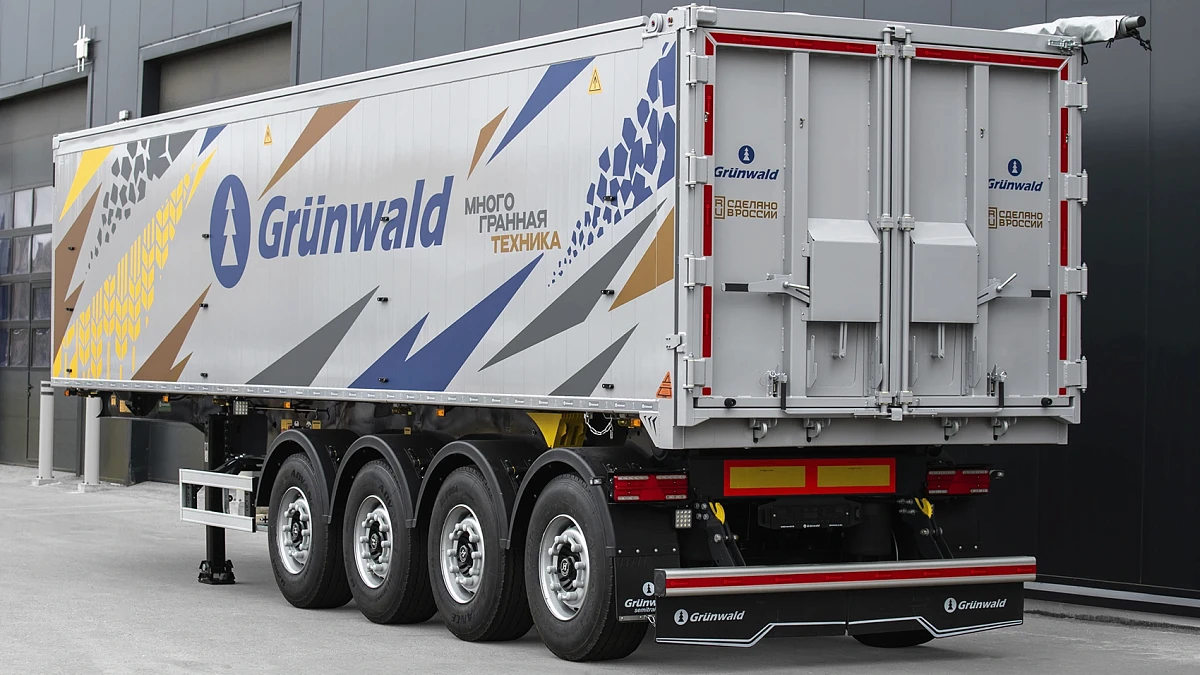

The rear side is combined, with several opening scenarios: according to the classic dump truck scheme with an upper hitch and according to the scenario of swing gates with two leaves. Each of the two gate leaves is equipped with a discharge window with a damper. Additionally, a flexible sleeve is provided for directed unloading of grain through one of the windows. In the upper part, the body is equipped with three removable crossbars that tighten the sides for additional rigidity.
At the request of the customer, the semitrailer configuration may include additional options:
-
3.5" kingpin;
-
Custom color scheme;
-
Custom vinyl decorations.
Certification
Grunwald semitrailers are certified in accordance with the latest certification regulations of the Federal Technical Regulation and Metrology Agency of the Russian Federation (Rosstandart) and conform to the requirements of the Technical Regulations of the Eurasian Economic Union (EAEU).
Warranty
The semitrailer structure warranty period is 12 months from the date of initial registration, but no more than 24 months from the date of manufacture as recorded in the Manufacturer’s Certificate of Origin.
