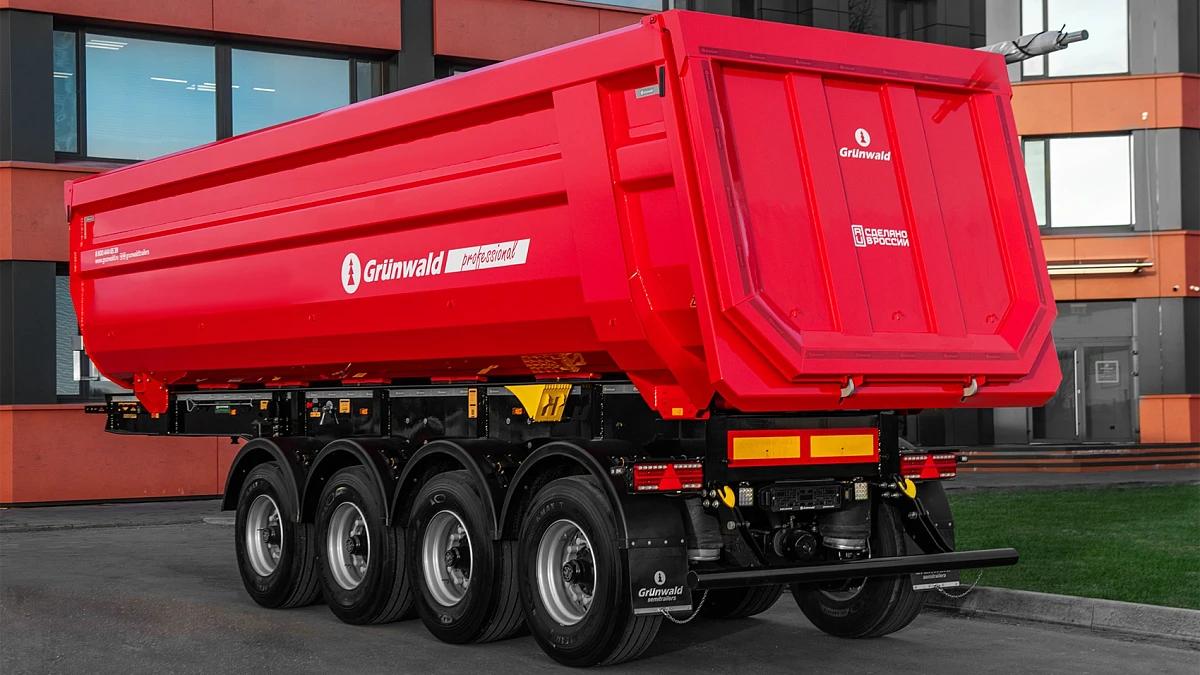

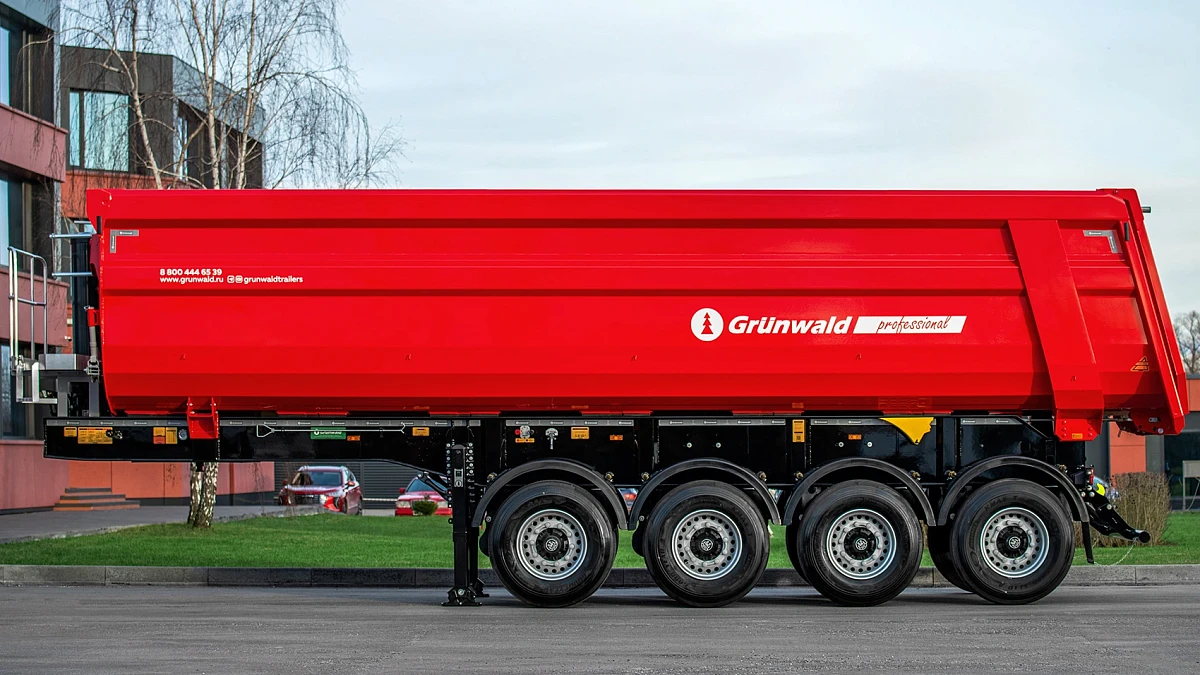

Tipper semi-trailer Gr.T38-SH

Unprecedented performance: More cargo per unit of time
Combination of power and reliability: In a field with traditionally difficult conditions
Stability and cross-country ability: For technological and temporary roads

Specifications

Geometric volume: 38 m3
Own weight: от 10 000 kg
Overall length: 10 270 mm
Kingpin load: 16 000 kg
Load capacity: 42 000 kg
Overall width: 2 500 mm
Fifth wheel height: от 1 220 mm
Maximum body lift angle: 47º
Overall height: 3 660 mm
Axle system load: 36 000 kg

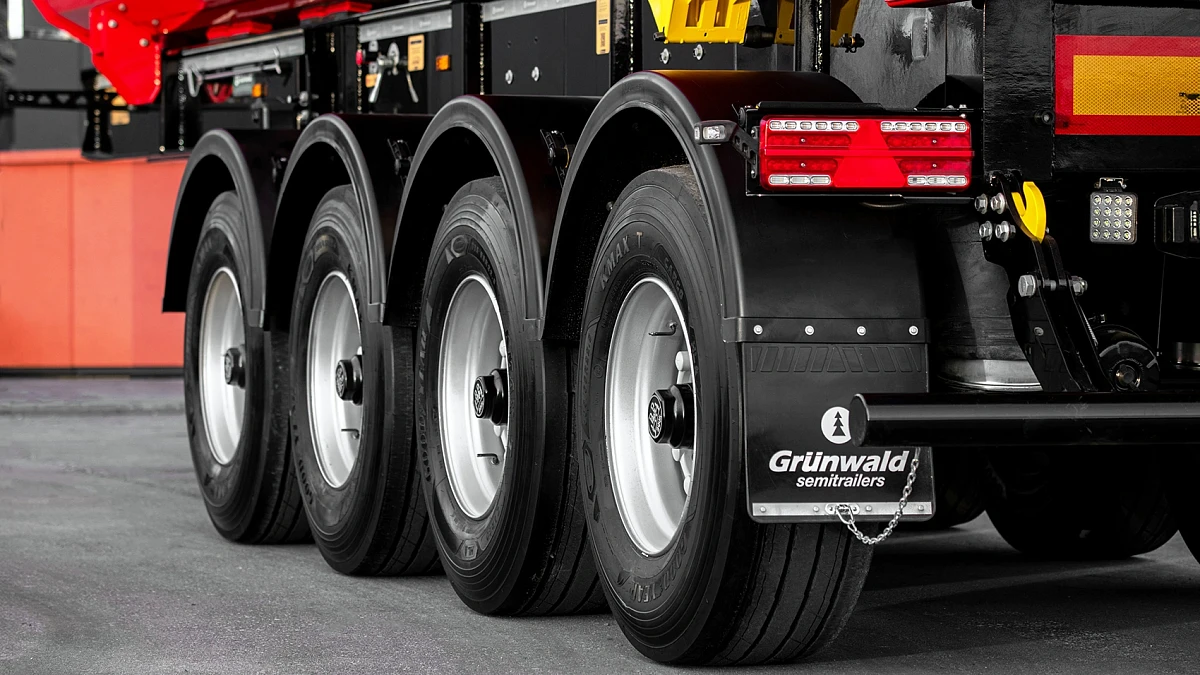

Tires: 385/65 R22.5
Permissible gross weight: 52 000 kg
Vehicle category: 04 стандарт

Description

In large construction projects – road and bridge construction, industrial and commercial – special high-performance and heavy-duty equipment is required everywhere. The same applies to construction vehicles, especially when the task is to move large volumes of materials uniformly, reliably and cheaply.

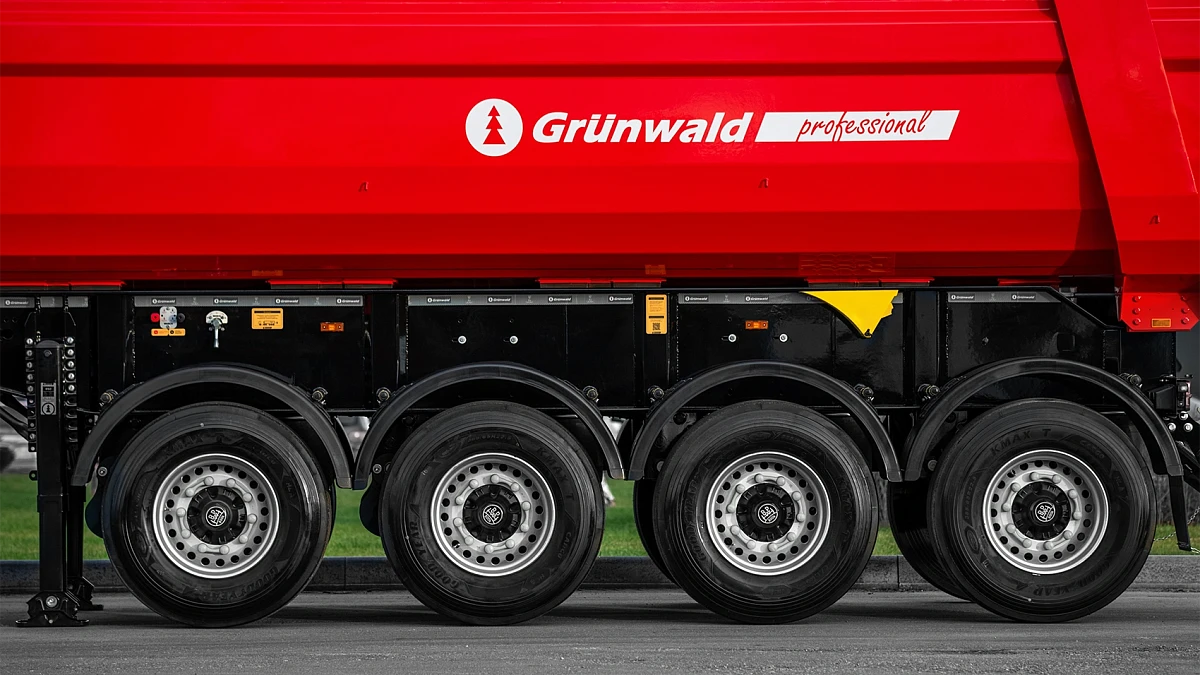

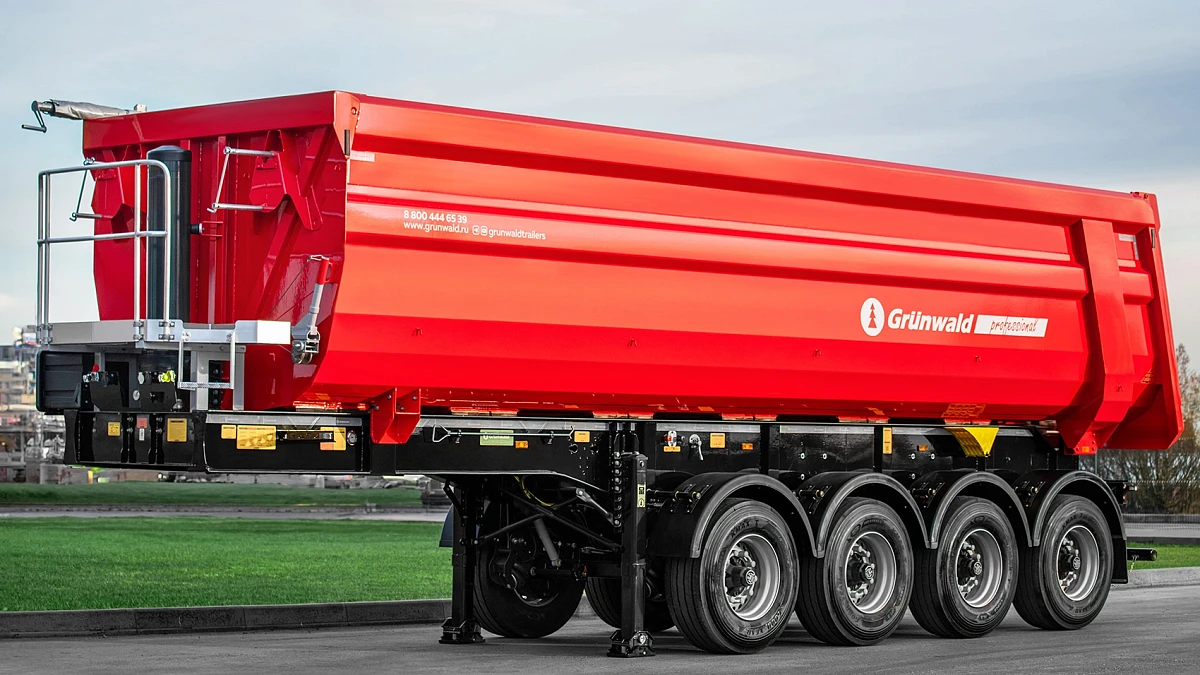

Such a vehicle is the Gr.T38-SH4 dump semi-trailer with a 4-axle chassis. High productivity with proportionate reliability and technical readiness became the basis of this model. At the same time, the semi-trailer remains a flexible tool and can solve a wide range of tasks for transporting any bulk cargo.

The Gr.T38-SH4 model belongs to the Grunwald series of heavy-duty dump semi-trailers. The semi-trailer is designed for work on large-scale construction sites, in difficult road conditions and in extremely tight deadlines. The main feature of the model is the ability to move large masses of inert materials in the shortest possible time. In accordance with these tasks, the strength properties of the semi-trailer chassis and the large useful volume of the dump body are ensured. The semi-trailer is designed for operation with tractor units with a fifth-wheel coupling height of 1220 mm.

At the request of the customer, the semitrailer delivery package may be upgraded to include the following additional options:

3.5 inch kingpin;

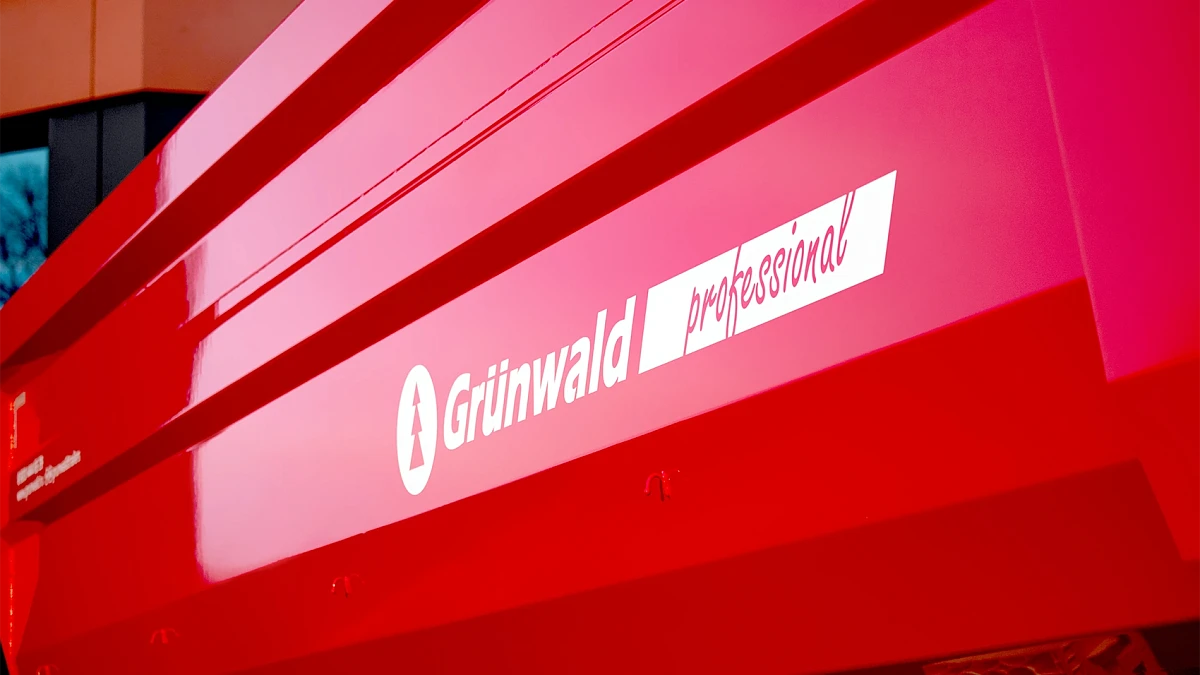

Color scheme;
Individual vinyl film design.

Certification

Grunwald’s semitrailers are certified in accordance with the latest certification rules published by the Federal Technical Regulation and Metrology Agency of the Russian Federation (Rosstandart) and conform to the requirements of the Technical Regulations of the Eurasian Economic Union (EAEU).

Warranty

The warranty period for the semitrailer structure shall be the lesser of 12 months from the time of initial registration or 24 months from the time of manufacture, as recorded in the Manufacturer’s Certificate of Origin.
